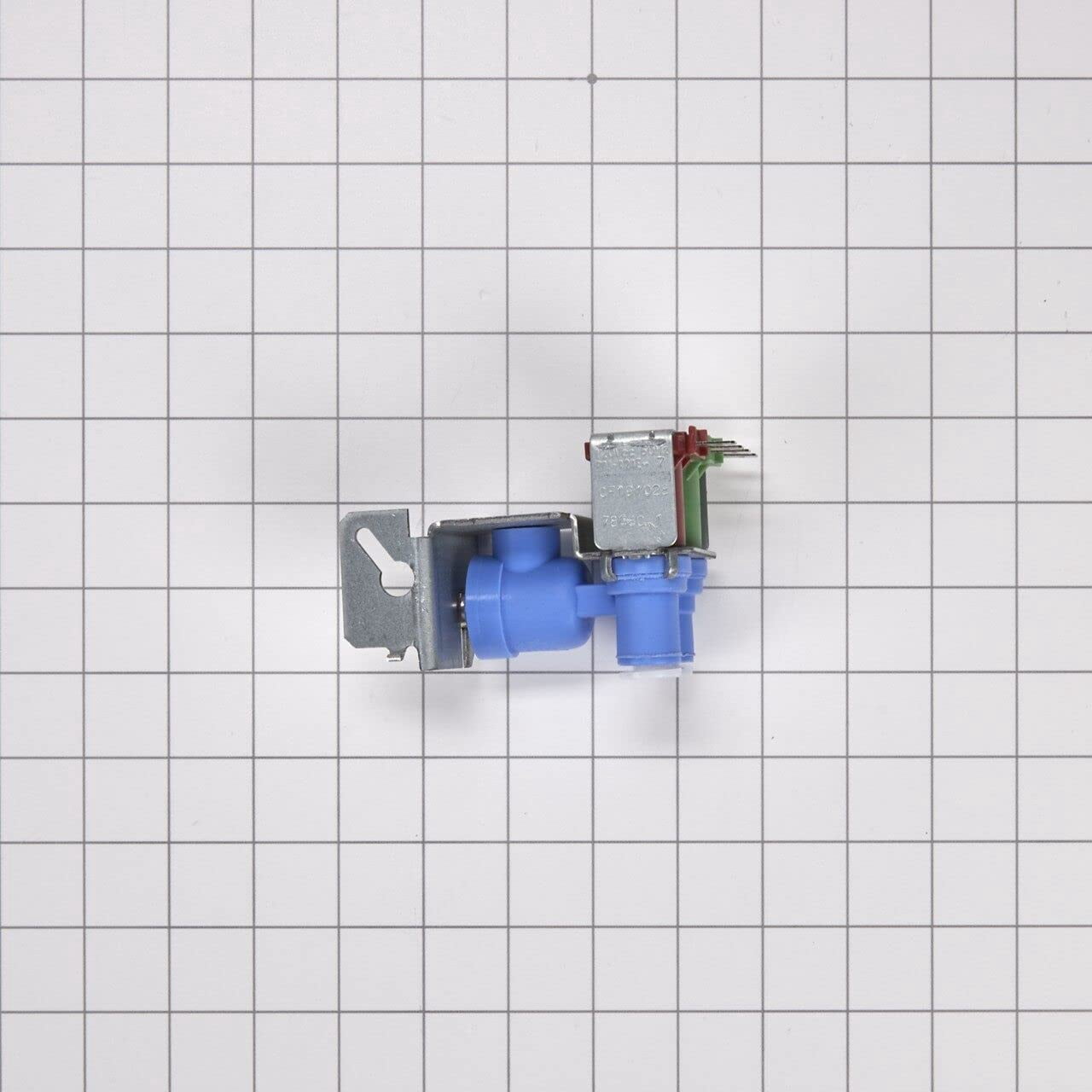

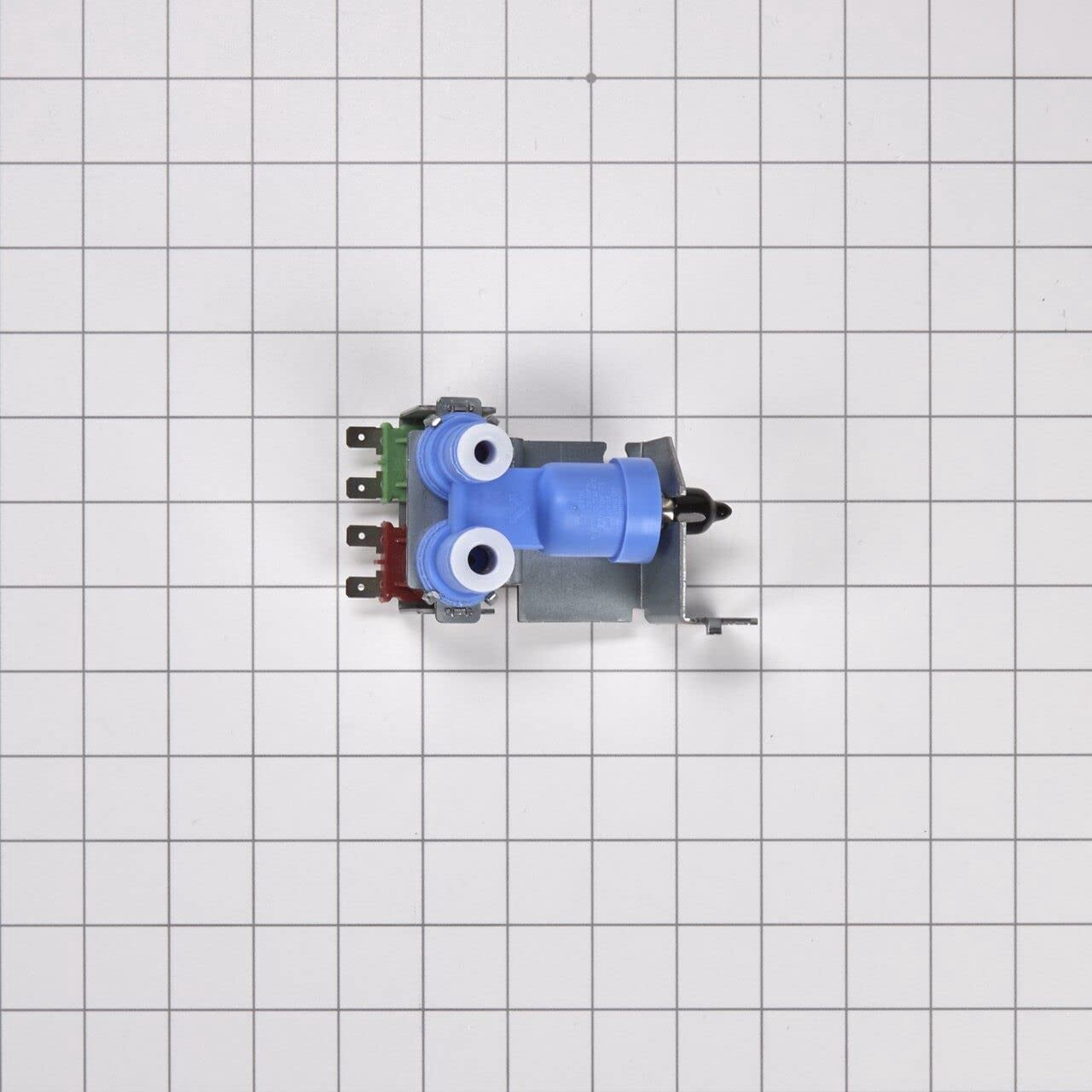

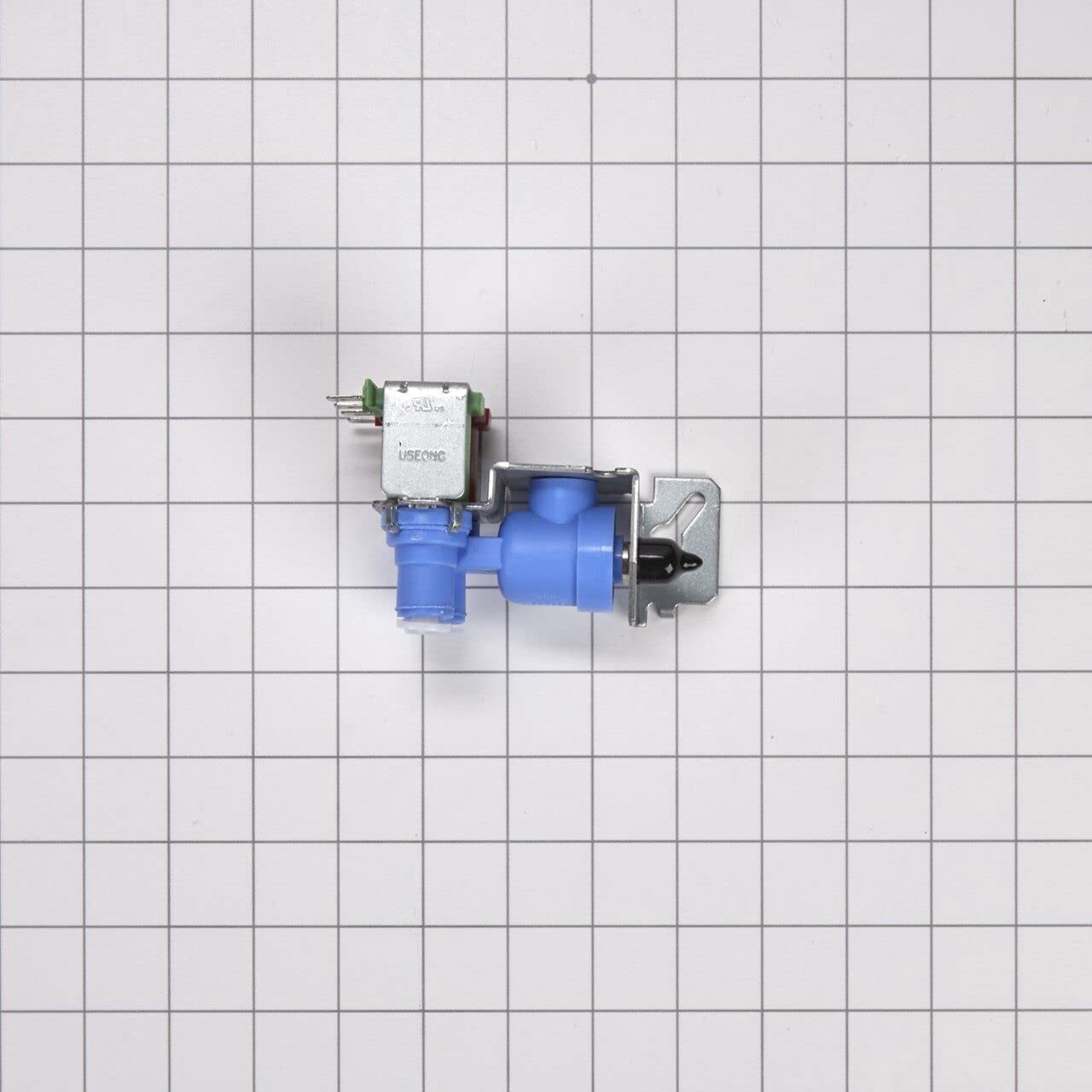

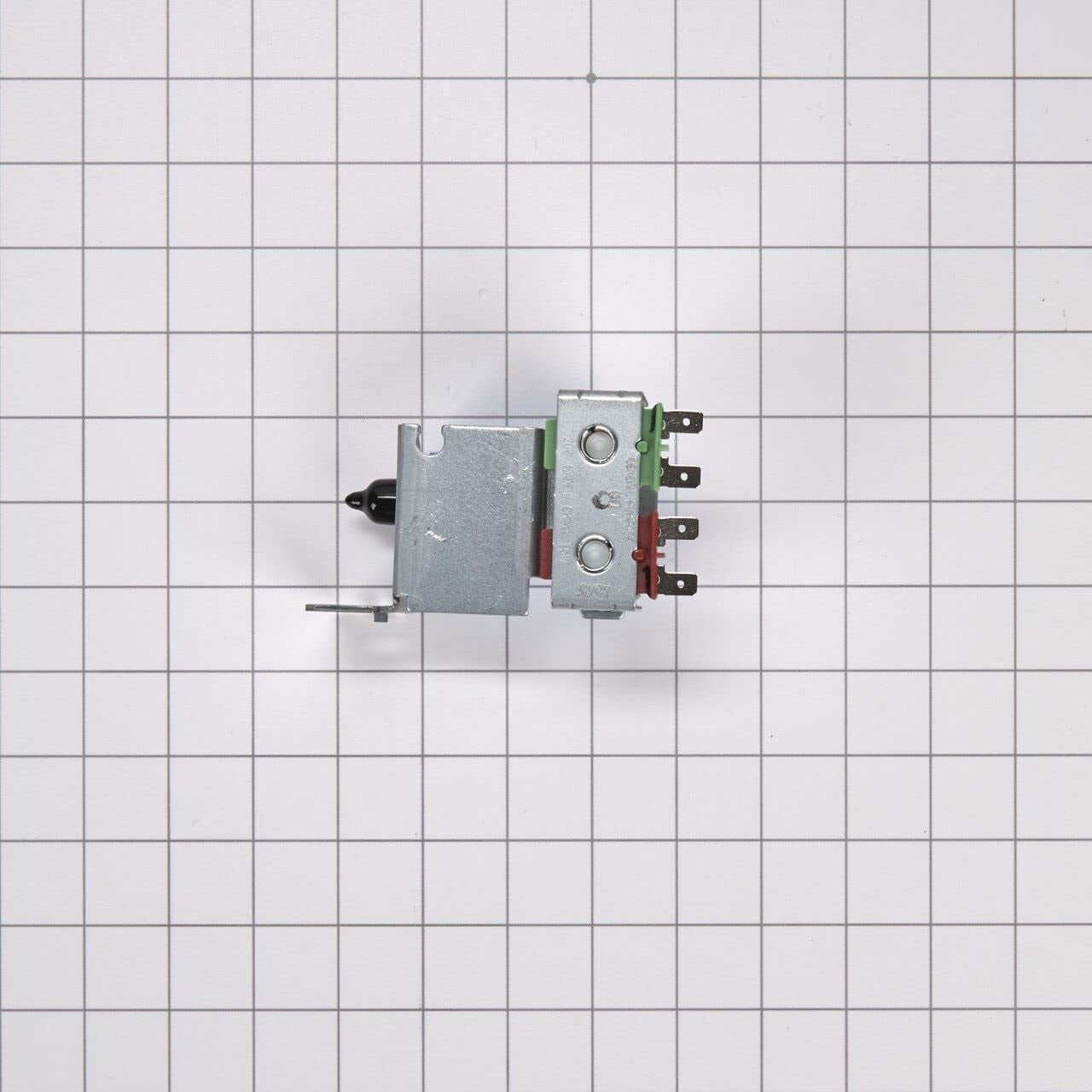

Whirlpool 61005626 Water Valve for Refrigerator, White

The SxS Refrigerator Water Inlet Valve allows water to enter the refrigerator’s water dispenser and ice maker. The package includes the new inlet water valve, instructions, ¼" tubing and a plastic ¼" coupler. If water isn't entering the ice maker and dispenser in your appliance, replacing this part may alleviate the issue. The new part's wire connections are on the back of the unit and the valve includes a "push to lock" fitting that doesn't require a nut to attach the tubing. You'll have to remove the old style compression fittings around the water line and trim, then push the water line directly into the valve where it will lock into place. Replacing this part will require basic hand tools, some disassembly of the appliance and novice repair experience. You must unplug the appliance or shut off the house circuit breaker before installing this part. Also turn off the refrigerator's water supply before you begin.

Works with the following models: Maytag ARS2760BW, Maytag CS21G5DQ, Crosley CS21G5DQ,Crosley CS21G5DW, Maytag CS21G5DW, Maytag CS24G6DB,Maytag CS24G6DQ, Maytag CS24G6DW,Maytag CS27G6DB, Maytag CS27G6DQ,Genuine replacement part

Compatible models	ARS2760BW, CS21G5DQ, CS21G5DW, CS24G6DB, CS24G6DQ, CS24G6DW, CS27G6DB, CS27G6DQ
Compatibility	Maytag, Crosley
Model	61005626
Brand	Whirlpool
Has written warranty	No
Dimensions	6.00 x 4.00 x 6.00 Inches
